BMW Motorrad - Frame, Body, Fairing, Luggage (46) for R nineT 20 (0L51,0L53) - ECE
Click on a diagram below to view and purchase parts
46_1962Licence plate adaptor

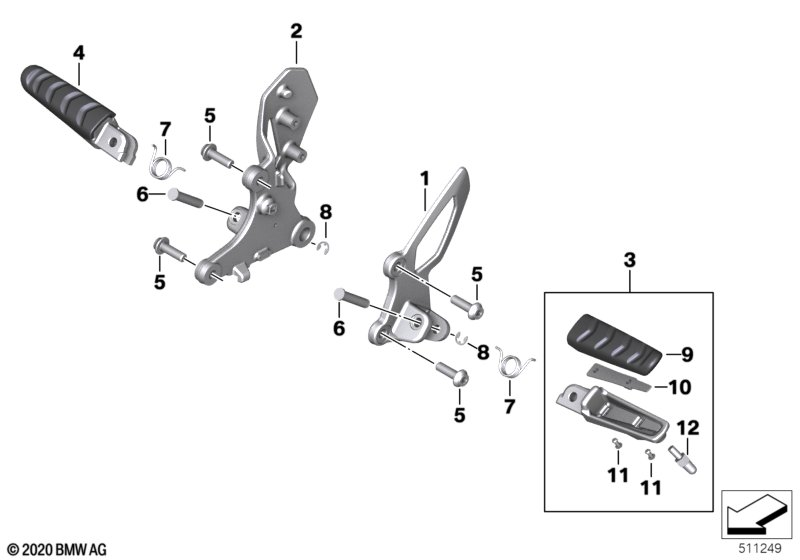

46_2027Footrest assembly, left
46_1554Support for rider's saddle

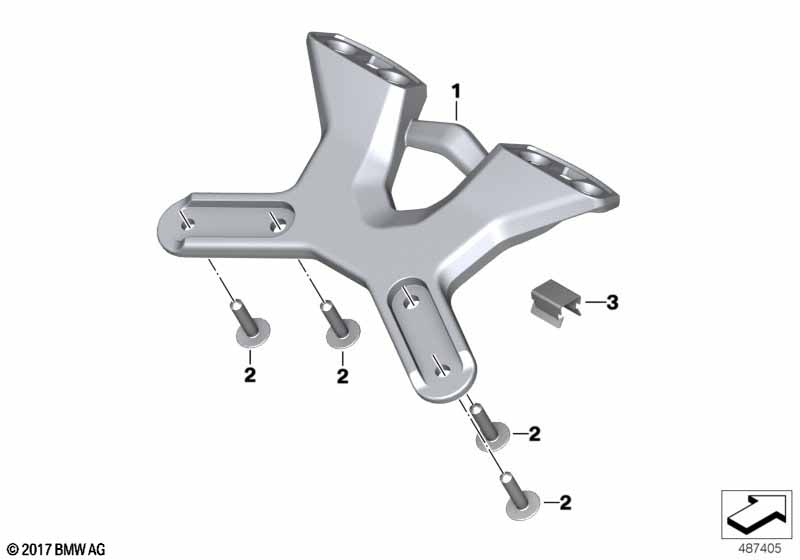

46_1946Bracket f instrument cluster
46_2028Footrest assembly, right
46_1902Cover panel ignition lock46_2348Main frame
46_1829Cover for intake snorkel
46_1556Rear wheel cover, license plate bracket
46_2365Headlight trim46_1892Side stand

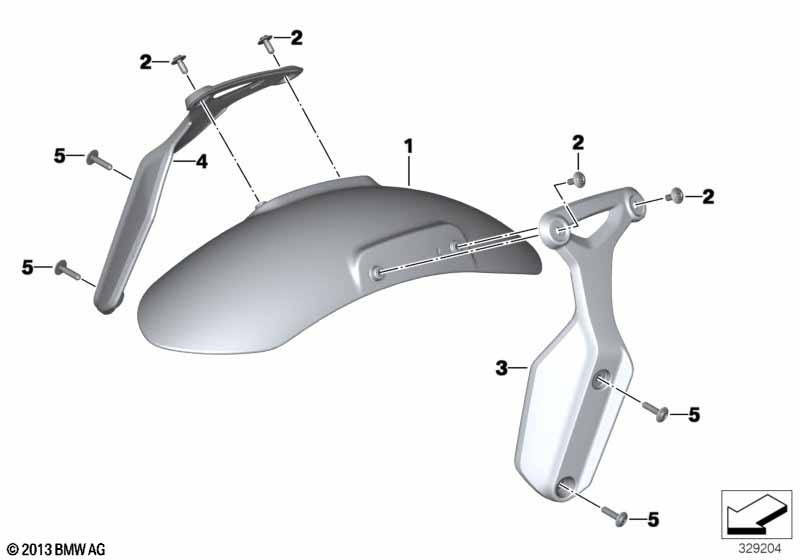

46_1947Front wheel cover
46_1553Cover, throttle assembly left

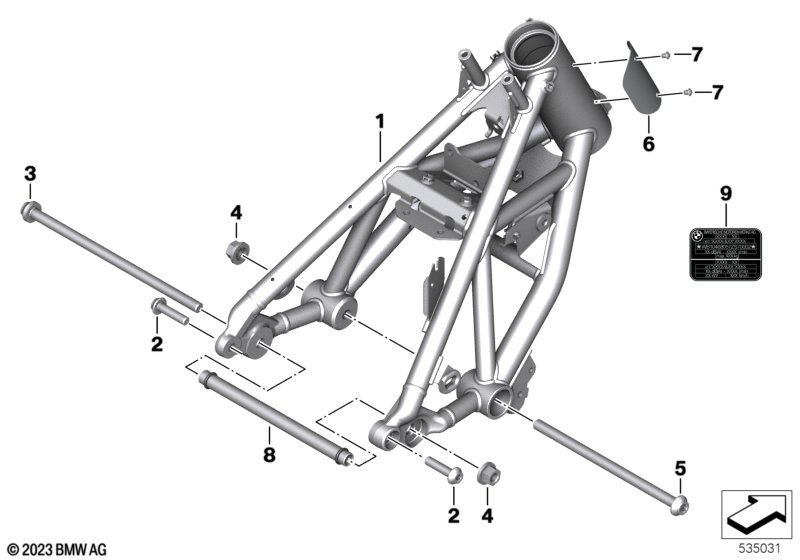

46_2349Footpeg plate/Front footpeg46_2346Front frame
46_2062Pillion-passenger footrests

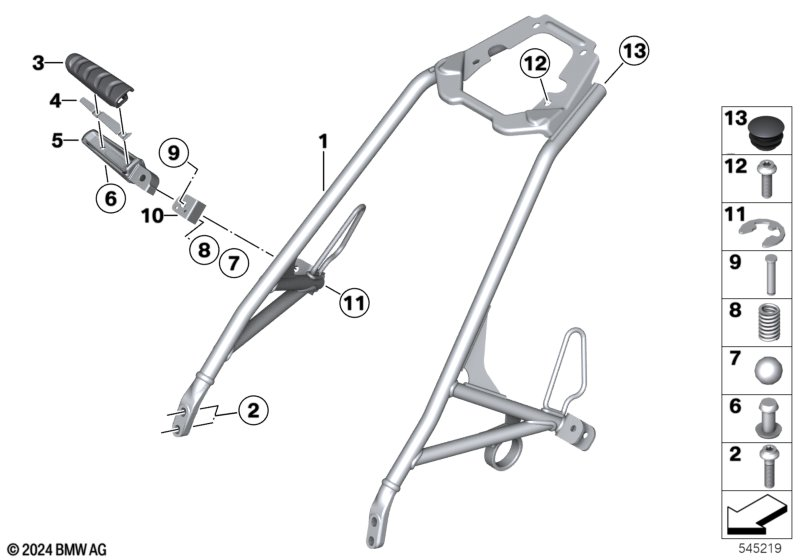

46_1537Passenger seat frame
46_2345Cover for intake silencer
