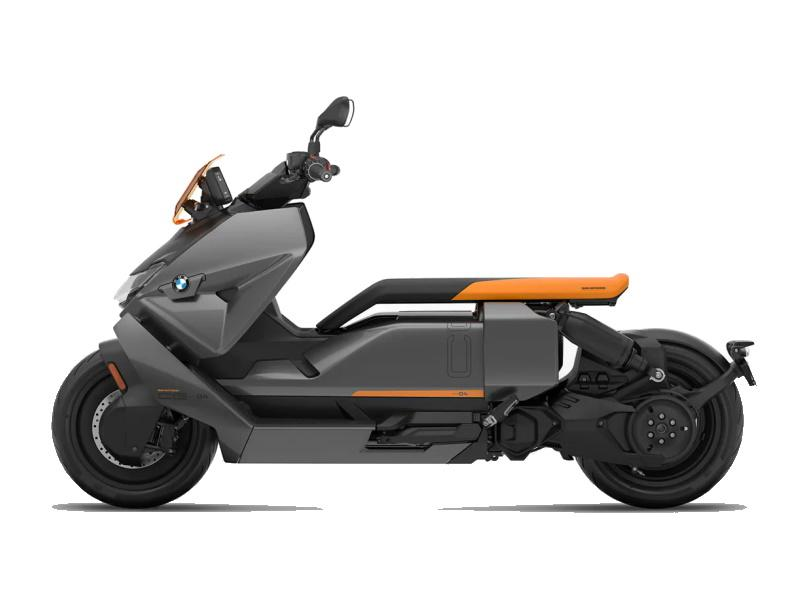

2022 BMW CE 04 Magellan Grey Metallic

2022 BMW CE 04 Style Avantgarde

THE SILENT REVOLUTION

You move around the world’s cities and metropolitan regions exactly at the point where each neighborhood represents the first step towards the next new idea. And you are also always on the move. We are familiar with this captivating dynamism as we have been applying it for over 10 years to develop solutions and concepts for urban electromobility, something that means far more now than just getting from A to B. It is from this long-term innovative leadership that the BMW CE 04 is launching into a new era of design, to seamlessly integrate into your everyday life thanks to its intelligent connectivity solutions – from navigation to clothing. Quite simply #PluggedToLife.

Ahead of the time and yet timeless

The design of the BMW CE 04 centers around the slim energy storage unit in the underfloor assembly and the compact drivetrain. The design liberties and solutions here have led to new aesthetics, for instance the charging compartment that folds out towards the side or the floating seat. The low center of gravity represents a further benefit: fun handling, surprising dynamism and timeless riding pleasure. As a result, one innovation seamlessly leads to another, in terms of design. Ample, calm and minimalistic surfaces dominate the overall design. In this context, the front end is excitingly broken up while the rear end reveals technological components, a typical feature of motorcycles.

Features may include:

• Stylish decorative sticker sets

Lend your BMW CE 04 an additional, individual touch with the optional sticker set for trim panels and the disc wheel.

• Large TFT color display

The standard 10.25” TFT color display offering a perfect view of all vital vehicle data and BMW Motorrad Connectivity services.

• Electric drivetrain

Fully electric, efficient and featuring a maintenance-free toothed-belt drive. That’s how you silently whizz through big cities with zero emissions.

• Practical storage compartment

Thanks to the practical Side Loading compartment with integrated lighting you can quickly and safely stow away a helmet and charging cable.

• Iconic light design

Tried-and-tested motorcycling technology: LED lighting ring and the optional adaptive headlight help provide more convenience and confidence.

• Striking disc wheel

The disc wheels consistently integrate into the minimalistic overall design of the BMW CE 04.

• Integrated side stand

A further design highlight. Even the side stand seamlessly integrates into the design of the BMW CE 04.

• Comfortable Pro seat

Comfortably travel in style on the optional Pro seat. Its two-tone design perfectly integrates into the design of the BMW CE 04.

Performance

• Top Speed75 mph (electronically limited)
• Acceleration2.6 s from 0 – 50 km/h (31.1 mph)

Battery

• BatteryTraction: Traction storage with high-voltage technology integrated in the vehicle underbody, central air cooling, permanently installed battery module, 40 lithium-ion battery cells, 8.5kWh (6.3 kWh with optional derating to 11 kW) | Secondary: 12 V / 5 Ah, maintenance-free
• Battery Capacity, Nominal148 V
• Battery Charger Input2.3 kW with integrated charger | 6.9 kW with optional quick charger
• Battery Charger TypeCharging cable with country-specific power plug
• Battery Charging TimeStandard: Approx. 4h:20min for 0-100% and approx. 3h:30min for 0-80% | Charging time with optional quick charger: Approx. 1h:40min for 0-100% and approx. 1h:05min for 0-80%

Drivetrain

• DrivetrainSecondary: Drive unit swing arm, toothed belt and gearbox with fixed transmission
• SteeringHead Angle: 63.5°
• Transmission1-speed transmission, integrated into motor housing

Chassis

• Frame TypeSteel double loop frame

Suspension

• Front SuspensionSingle-bridge telescopic forks with 100 mm spring travel
• Rear SuspensionSingle-sided swing arm/central spring strut with 92 mm suspension travel

Brakes

• Front braking systemDouble disc brake 265 mm (4 piston fixed caliper)
• Rear braking systemSingle disc brake 265 mm (1 piston floating caliper)
• ABS OptionBMW Motorrad ABS

Wheels & Tires

• WheelsCast aluminum wheels (disc wheel or disc wheel optics)
• Front Wheel3.50 x 15”
• Rear Wheel4.50 x 15”
• Front Tire120/70 R15
• Rear Tire160/60 R15

Dimensions

• DimensionsInner leg curve at vehicle curb weight: 1,810 mm (71.3
• Wheelbase1,675 mm (66
• Length2,285 mm (90
• Width(over mirrors) 855 mm (33.7
• Seat Height780 mm (30 .7
• Castor120 mm (4.7
• Height(above windshield) 1,150 mm (45.3

Capacities

• Payload Capacity(with standard equipment) 179 kg (395 lbs)

Weights

• WeightUnladen, road ready: 231 kg (509 lbs) | Permitted total: 410 kg (904 lbs)

Electric

• AlternatorDC/DC converter with 500 watts that has been integrated into the charger
• ElectricalRated capacity: 20 hp

Features

• FeaturesRecuperation: Automatic recuperation in overrun mode

Motor

• Motor Power42 hp at 4,900 rpm
• Motor Torque45.7 lb-ft at 0 – 4,900 rpm
• Motor TypePermanent-magnet liquid-cooled synchronous motor

Range

• Range, Cityaccording to WMTC: Approximately 80 mi
