2024 Ducati Panigale V4 S Red

THE DUCATI PANIGALE V4

The Panigale V4 represents the last step in the characteristic path of the Borgo Panigale sports bikes and it takes life from Ducati Corse long-time experience married to continuous knowledge and technology sharing from the world of racing directly to production bikes.

With the newest version, the Panigale V4 project completes the most significant evolution since its birth. The improvements involve all areas: aerodynamics, ergonomics, engine, chassis and electronics. The result is an even faster bike on the racetrack and at the same time more intuitive and less tiring for a wide range of riders. In short, it offers great and rewarding excitement to pro-rider and amateur alike.

Major Improvements

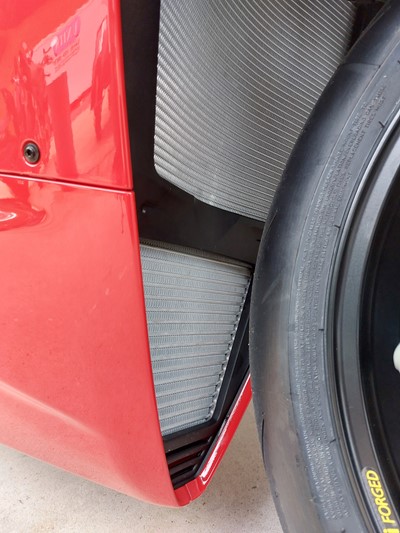

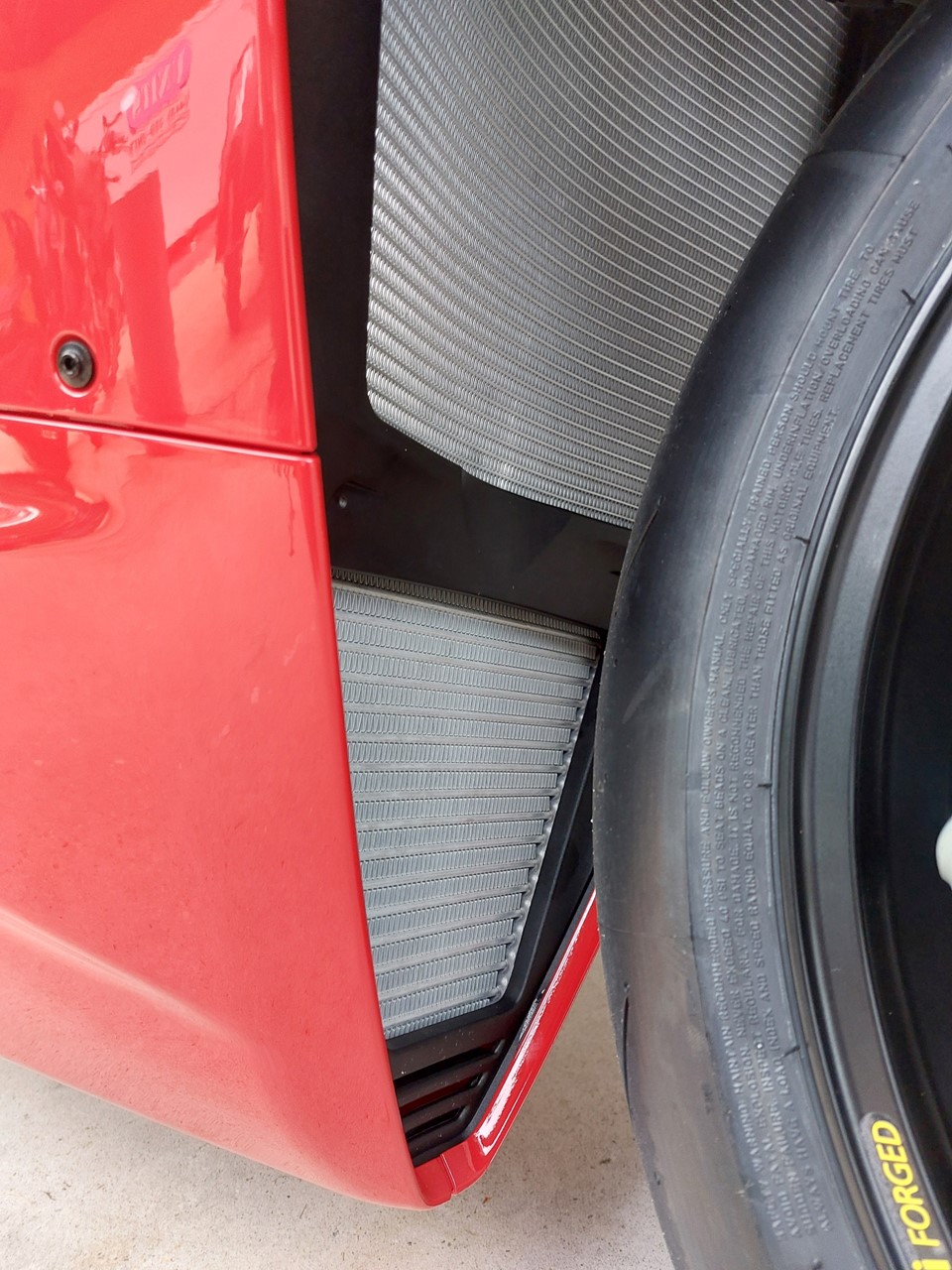

• AERODYNAMIC — Even more beautiful with new, more compact and efficient double-profile-design wings and redesigned extraction sockets to improve the cooling system.
• ENGINE — New SBK gearbox with lengthened I, II, and VI gears to be faster on track. New torque management strategy that guarantees the rider the possibility of always having the optimal thrust when opening the throttle.
• CHASSIS — Equipped with the new Öhlins NPX 25/30 electronically controlled pressurized fork that uses a pressurized cartridge damping system with a 125 mm travel.
• ERGONOMICS — The seat and tank have been redesigned to maximize the rider's performance and minmize the physical effort required for track riding.
• ELECTRONIC CONTROLS — New Power Mode logic with 4 engine configurations to satisfy all types of riders, from professionals to amateurs tackling their their first track days.
• TFT EQUIPMENT — SBK-style gear shift indicator. New graphics designed for the track to help the rider fine-tune the electronic controls.

Redesigned look

Even the look of the bike has been revamped, with a further dose of aggressive flavour. The unprecedented graphic design conceived by the Ducati Centro Stile includes the black color for the logos applied to the full red fairings, the double fabric saddle (two-tone on the S version) and, again for the S version, the red tag on the black rims.

Contact a member of the Sales Team at Bob's for more information!

Engine

• Bore / stroke81 x 53.5 mm
• Compression ratio14.0:1
• Displacement1,103 cc
• TypeDesmosedici Stradale 90° V4, counter-rotatingcrankshaft, 4 Desmodromic timing, 4 valves percylinder, liquid-cooled
• Exhaust4-2-1-2 system, with 2 catalytic converters and 4 lambda probes.
• Fuel injectionElectronic fuel injection system. Twin injectors per cylinder. Full ride-by-wire elliptical throttle bodies. Variable length intake system
• Power210 hp (154.5 kW) @ 12,500 rpm
• Torque90.6 lb-ft (122.8 Nm) @ 11,000 rpm

Power transmission

• ClutchHydraulically controlled slipper and self-servo wet multiplate clutch. Self bleeding master cylinder.
• Gearbox6 speed with Ducati Quick Shift (DQS) up/down EVO 2
• Final driveChain 525; Front sprocket 16; Rear sprocket 41
• Primary driveStraight cut gears; Ratio 1.80:1
• Ratio1=36/15 2=34/17 3=33/19 4=32/21 5=30/22 6=27/22

Dimensions / weights

• Seat height33.5 in (850 mm)
• Fuel tank capacity4.49 gallon (US) - 17 l
• Number of SeatsDual seats
• Rake24.5°
• Trail3.94 in (100 mm)
• Wet weight no fuel423 lb (192 kg)

Chassis / brakes

• FrameAluminum alloy
• Front Brake2 x 330 mm semi-floating discs, radially mounted Brembo Monobloc Stylema® (M4.30) 4-piston calipers with Bosch Cornering ABS EVO. Self bleeding master cylinder.
• Front suspensionFully adjustable Showa BPF fork 43 mm chromed inner tubes
• Front TirePirelli Diablo Supercorsa SP 120/70 ZR17
• Front Wheel5-spokes light alloy 3.50
• InstrumentationLast generation digital unit with 5
• Rear Brake245 mm disc, 2-piston caliper with Bosch Cornering ABS EVO
• Rear suspensionFully adjustable Sachs unit. Aluminum single-sided swingarm
• Rear TirePirelli Diablo Supercorsa SP 200/60 ZR17
• Rear Wheel5-spokes light alloy 6.00” x 17”
• Wheel Travel (Front/Rear)4.7 in (120 mm) - 5.1 in (130 mm)

Mileage / consumption

• NotesBike specifications and equipment may vary from market to market. Please refer to your local dealer for further information

Equipment

• Provided EquipmentPassenger seat and footpegs kit
• Ready forDucati Data Analyser+ (DDA+) with GPS module, Ducati Multimedia System (DMS), Anti-theft, Heated grips
• Safety EquipmentRiding Modes, Power Modes, Bosch Cornering ABS EVO, Ducati Traction Control (DTC) EVO 3, Ducati Wheelie Control (DWC) EVO, Ducati Slide Control (DSC), Engine Brake Control (EBC) EVO 2, Auto tyre calibration
• Standard equipmentDucati Power Launch (DPL), Ducati Quick Shift (DQS) up/down EVO 2, Full LED lighting with Daytime Running Light (DRL), Sachs steering damper, Quick adjustment buttons, Auto-off indicators, Chain guard

Warranty

• Maintenance7,500 mi (12,000 km) / 12 months
• Valve Clearance Check15,000 mi (24,000 km)
• Warranty24 months unlimited mileage
