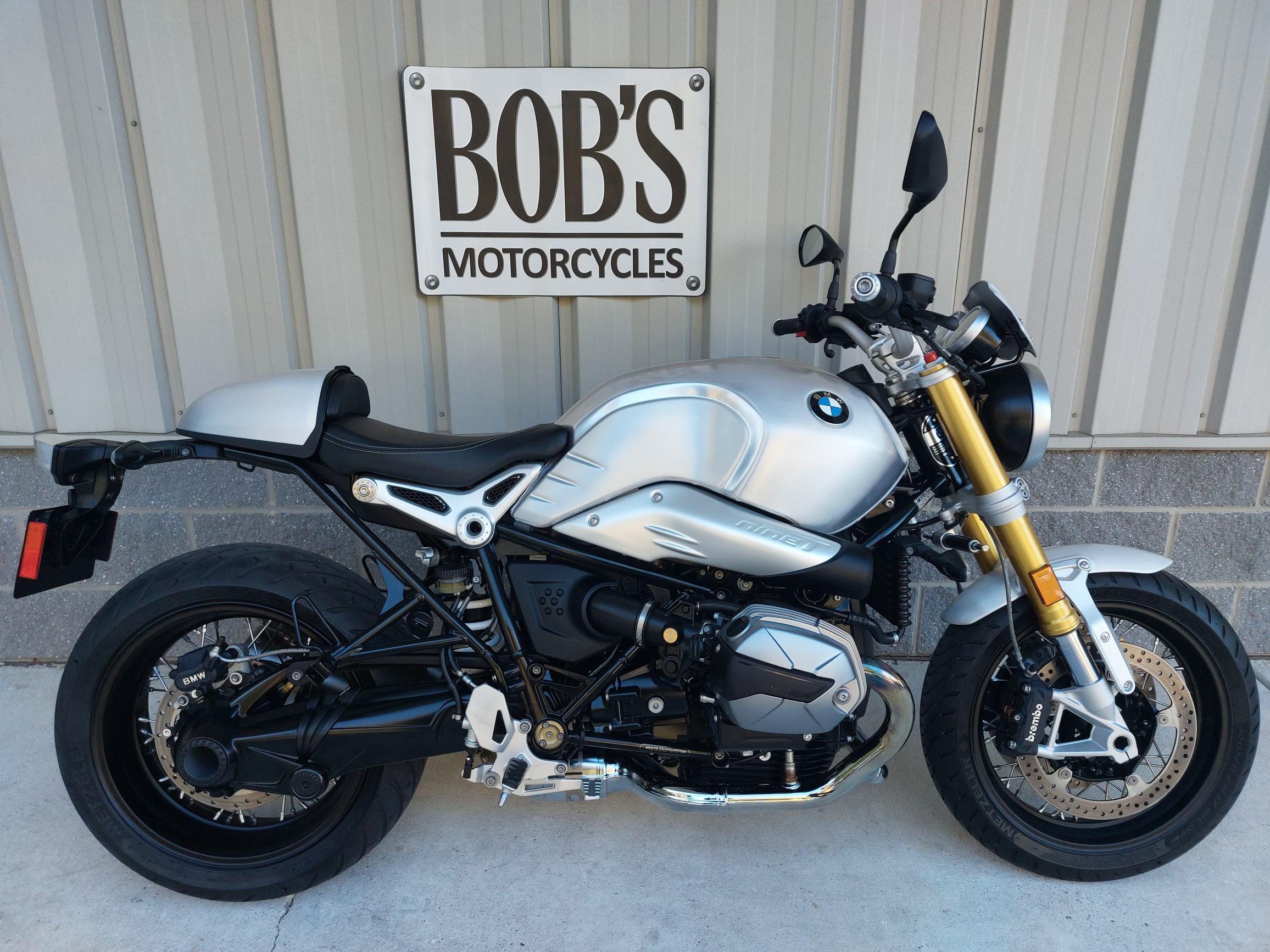

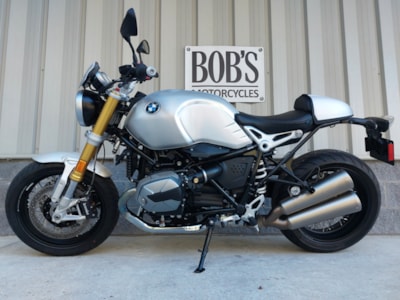

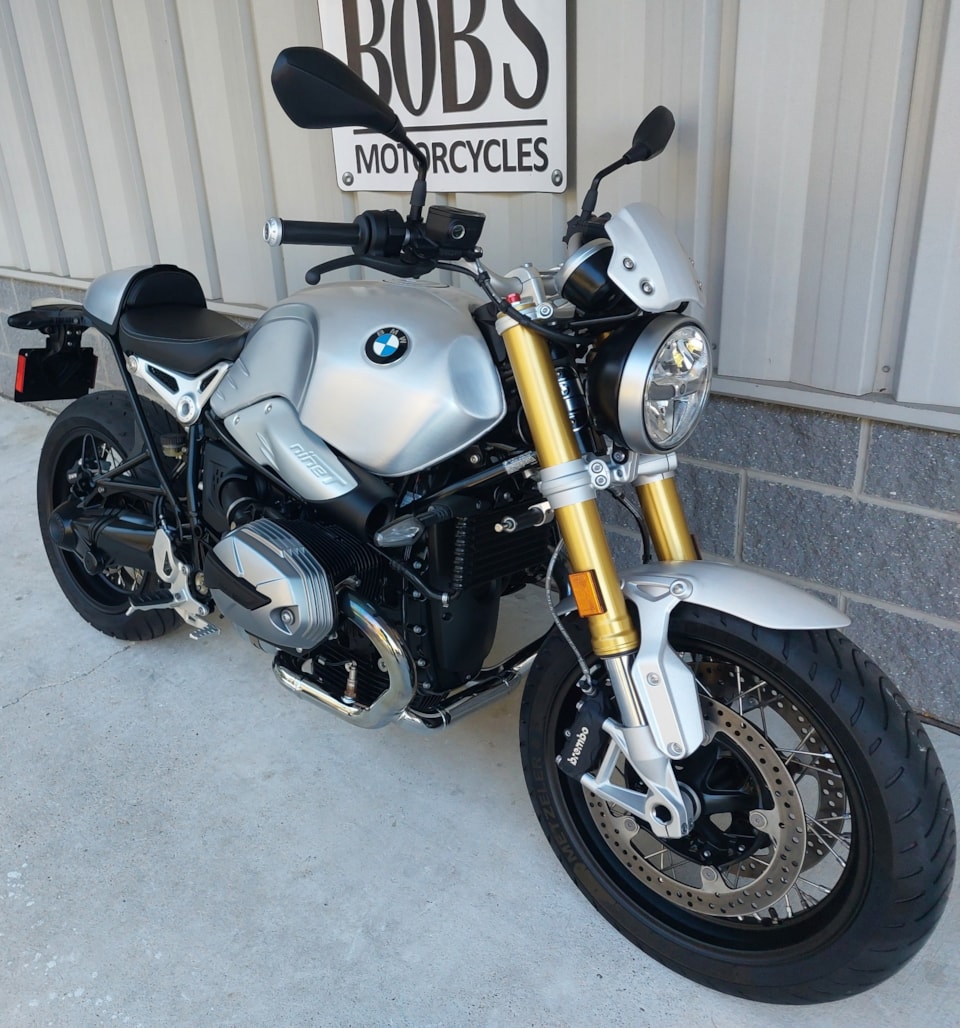

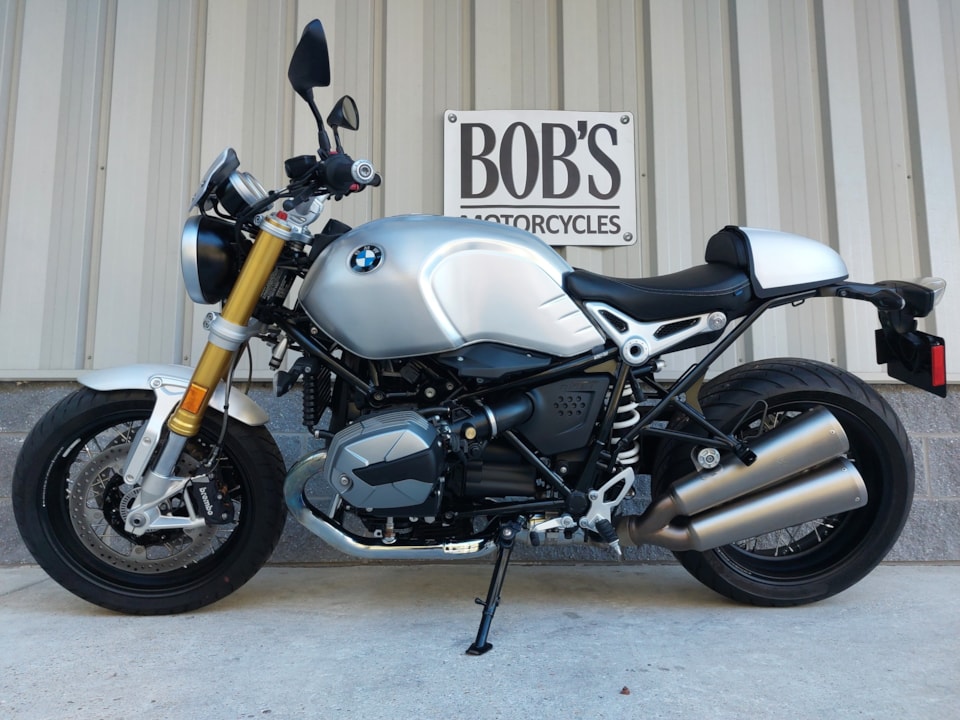

2023 BMW R nineT SILVER

Engine

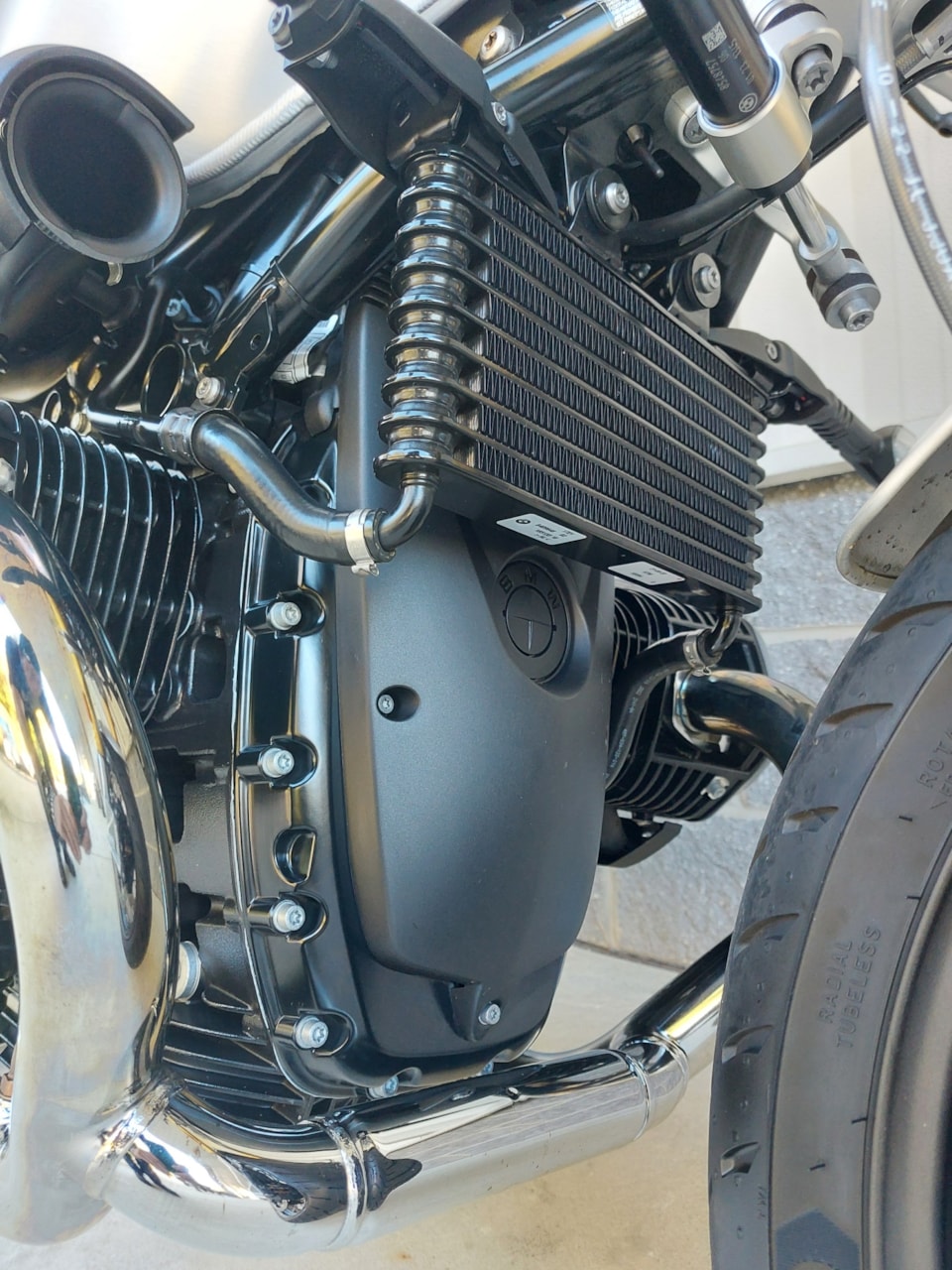

• TypeAir/oil-cooled two-cylinder, four-stroke boxer engine with two camshafts and four radially-arranged valves per cylinder as well as central counterbalance shaft
• Capacity (Displacement)1,170 cc
• Bore / Stroke4.0” x 2.9”
• Compression Ratio12.0 : 1
• Rated Output (Horsepower)109 hp at 7,250 rpm
• Max. Torque85.5 lbs-ft. at 6,000 rpm
• Mixture Control / Engine ManagementElectronic port fuel injection
• Emission ControlClosed-loop 3-way catalytic converter

Performance / Fuel

• Fuel typeUnleaded super(premium)
• Maximum speedover 124 mph

Electrical System

• AlternatorThree-phase alternator with 720 Watt nominal power
• Battery12 V / 12 Ah

Power Transmission

• ClutchSingle dry plate clutch, hydraulically operated
• GearboxClaw-shifted six-speed transmission with helical-cut splines
• DriveShaft drive

Chassis / Brakes

• FrameFour-part frame concept with front frame and three-part rear frame, load-bearing engine-gearbox unit, rear-seat frame removeable for one-up riding
• Front wheel location / suspensionUpside-down telescopic forks, 46 mm fixed-fork-tube diameter
• Rear wheel location / suspensionCast aluminum single swing arm with BMW Motorrad Paralever; central spring strut, spring preload fully adjustable by handwheel, adjustable rebound-stage damping
• Suspension travel front / rear4.7
• Wheelbase58.5”
• Castor4.3
• Steering head angle63.2°
• WheelsSpoke wheels
• Rim dimensions, front3.50 x 17
• Rim dimensions, rear5.50 x 17
• Tire, front120/70 ZR 17
• Tire, rear180/55 ZR 17
• Brake, frontTwin-disc brakes, diameter 12.6
• Brake, rearSingle disc brake, diameter 10.4
• ABSBMW Motorrad ABS Pro

Dimensions / Weights

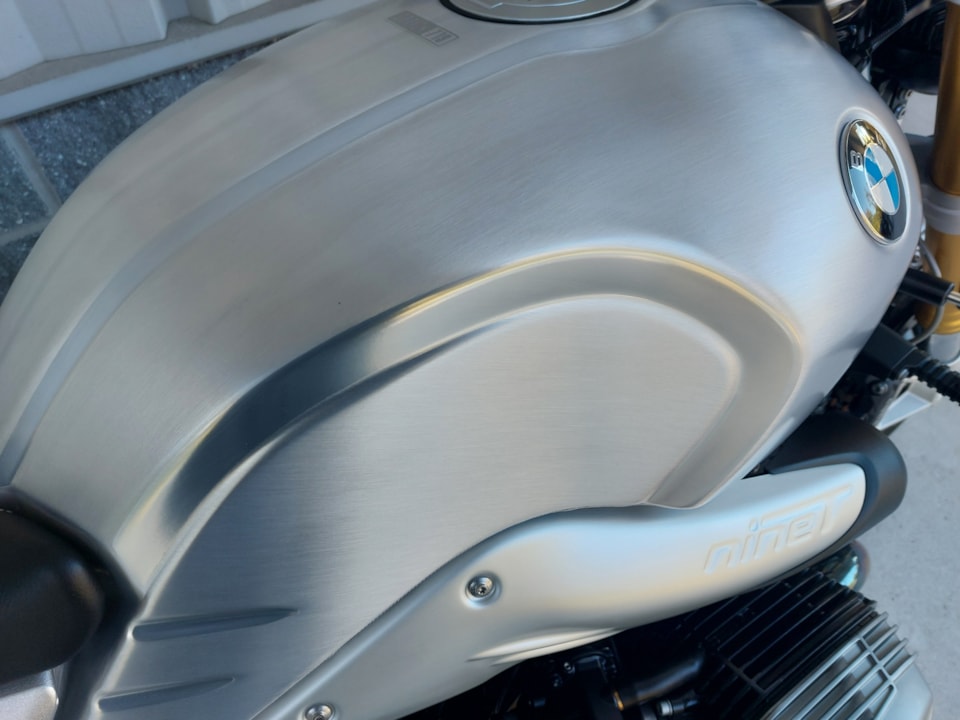

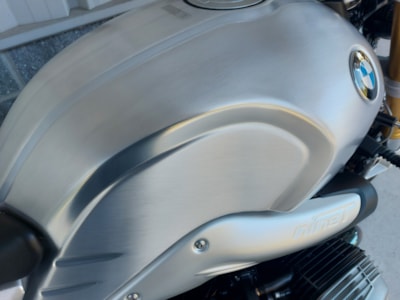

• Usable tank volume (incl. reserve)4.5 gal.
• Reserveapp. 0.8 gal.
• Unladen weight, road ready, fully fueled487 lbs.
• Permitted total weight948 lbs.
• Payload (with standard equipment)460 lbs.
• Length82.9”
• Height (incl. mirrors)48.8”
• Inner leg curve70.3”
• Seat height31.7”
• Width (incl. hand levers)34.8”
